ETNA N-Type 570–600W Mono-Facial Solar Panel

High-Efficiency Solar Module for Commercial, Industrial & Large-Scale Projects

*Price is per pallet

The ETNA N-Type 570–600W Mono-Facial Solar Panel is engineered for maximum reliability, superior energy output, and long-term performance in demanding environments. Designed with advanced N-type mono-crystalline technology, this panel delivers exceptional efficiency while maintaining excellent durability against harsh weather conditions.

Ideal for commercial rooftops, solar farms, industrial installations, and large off-grid systems, the ETNA 570–600W module ensures stable production with low degradation and strong performance in low-light conditions.

Key Advantages

High Performance & Reliability

• N-type mono-crystalline technology for higher efficiency
• Rated power output: 570W to 600W
• Excellent power generation under low-light conditions using MBB technology
• Strong resistance to PID (Potential Induced Degradation)

Durability in Extreme Conditions

• Certified for heavy loads:

• 5400Pa snow load
• 2400Pa wind load
• Anti-microcracking design with balanced internal stress
• Operating temperature range: -40°C to +85°C

Premium Construction

• 3.2mm anti-reflection, low-iron tempered glass
• Anodized aluminium alloy frame
• IP68-rated junction box for enhanced water and dust resistance

Technical Specifications

Cell Type

N-type Mono-crystalline

Number of Cells

144 (6 × 24)

Dimensions

2278 × 1134 × 30 mm

Weight

25.9 kg

Front Glass

3.2mm anti-reflection, high-transmission, low-iron tempered glass

Frame

Anodized aluminium alloy

Junction Box

IP68 rated

Cables

TUV 1 × 4.0mm²

(+): 300mm / (-): 300mm or custom length

Electrical Performance

Maximum System Voltage

1000 / 1500 VDC (IEC)

Maximum Series Fuse Rating

25A

Power Tolerance

0 ~ +3%

Temperature Coefficients

• Pmax: -0.29% / °C
• Voc: -0.25% / °C
• Isc: +0.045% / °C

Nominal Operating Cell Temperature (NOCT)

45 ± 2°C

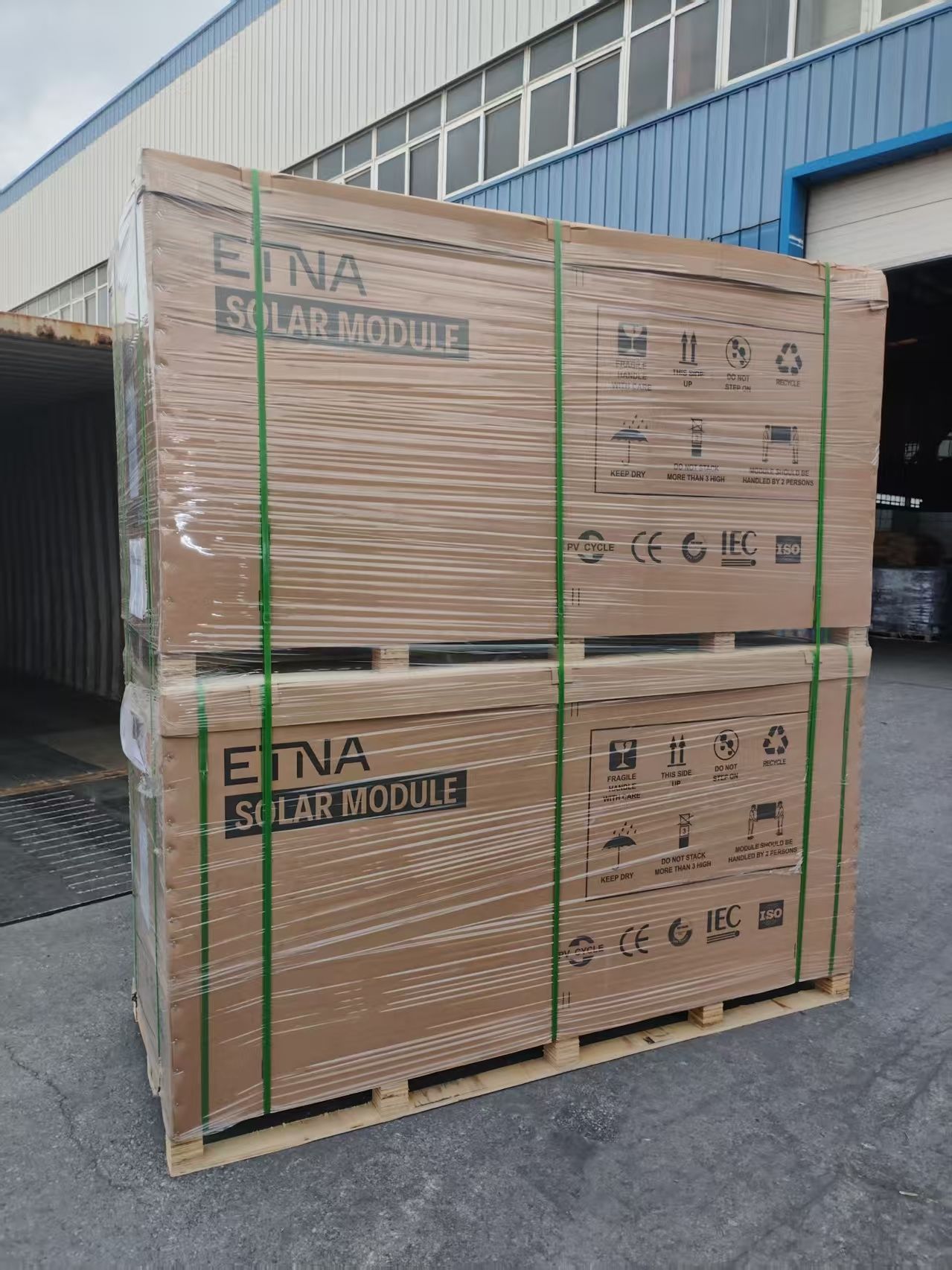

Packing & Logistics

• 36 panels per pallet
• 72 panels per stack
• 720 panels per 40’HQ container

Perfectly optimized for large-scale transport and efficient storage.

Applications

✔ Commercial rooftops

✔ Utility-scale solar farms

✔ Industrial facilities

✔ Agricultural systems

✔ Off-grid power systems

Why Choose ETNA Solar Panels?

• Proven long-term performance
• High mechanical strength
• Reduced degradation rate
• Consistent output in all weather conditions
• Built for Canadian and international climate conditions

Available Configuration

ETNA N-Type Mono-Facial Solar Panel

Power Range: 570W – 600W

For pricing, pallet orders, or project consultation, contact ETNA Industries today.
